Possible Reasons of Mechanical Seals Leakage and Solutions

In the application of slurry pumps, With the increase in the application of mechanical seals, the problem of leakage has attracted more and more attention. The operation of mechanical seals directly affects the normal operation of the pump. The summary and analysis are as follows.

1. Periodic leakage

(1) The axial movement of the pump rotor is large, and the interference between the auxiliary seal and the shaft is large, and the rotary ring cannot move flexibly on the shaft. After the pump is turned over and the rotary and stationary rings are worn, the displacement cannot be compensated.

Solution: When assembling the mechanical seal, the axial movement of the shaft should be less than 0.1mm, and the interference between the auxiliary seal and the shaft should be moderate. While ensuring the radial seal, the rotary ring can be flexibly moved on the shaft after assembly. (Press the rotary ring to the spring and it can bounce back freely).

(2) Insufficient lubrication of the sealing surface causes dry friction or roughness on the sealing end surface.


A) Horizontal slurry pump: Sufficient cooling water should be provided.

B) Submersible sewage pump: The height of the lubricating oil surface in the oil chamber should be higher than the sealing surface of the dynamic and static rings.

(3) The rotor vibrates periodically. The reason is that the misalignment of the stator and the upper and lower end caps or the imbalance of the impeller and the main shaft, cavitation or bearing damage (wear) will be caused. This situation will shorten the seal life and cause leakage.

Solution: The above problem can be corrected according to the maintenance standard.

2. Leakage due to pressure

(1) Mechanical seal leakage caused by high pressure and pressure waves. When the spring specific pressure and total specific pressure design are too large and the pressure in the seal cavity exceeds 3 MPa, the specific pressure of the seal end face will be too large, the liquid film will be difficult to form, and the seal end face will be severely worn. , The heat generation increases, causing thermal deformation of the sealing surface.

Solution: When assembling the mechanical seal, the spring compression must be carried out in accordance with the regulations, and it is not allowed to be too large or too small. Measures should be taken for the mechanical seal under high pressure conditions. In order to make the end face force reasonable and minimize deformation, materials with high compressive strength such as cemented carbide and ceramic can be used, and cooling and lubrication measures should be strengthened, and driving transmission methods such as keys and pins can be selected.

(2) Mechanical seal leakage caused by vacuum operation. During the start and stop of the pump, due to the blockage of the pump inlet and the gas contained in the pumped medium, it may cause negative pressure in the sealed cavity. If there is negative pressure in the sealed cavity, Dry friction on the seal end surface will be caused, which will also cause air leakage (water) in the built-in mechanical seal. The difference between vacuum seal and positive pressure seal is the difference in the directionality of the sealing object, and the mechanical seal also has its adaptability in one direction.

Solution: Adopt double end face mechanical seal, which helps to improve lubrication conditions and improve sealing performance. (Note that the horizontal slurry pump generally does not have this problem after the plugging of the pump inlet)

3. Mechanical seal leakage caused by other problems

There are still unreasonable places in the design, selection, and installation of mechanical seals.

(1) The compression of the spring must be carried out in accordance with the regulations. Excessive or too small is not allowed. The error is ±2mm. Excessive compression will increase the specific pressure of the end face, and excessive frictional heat will cause thermal deformation of the sealing surface and accelerate end face wear. If the compression is too small, if the specific pressure of the static and dynamic ring end faces is insufficient, the seal cannot be performed.

(2) The end surface of the shaft (or sleeve) where the moving ring seal ring is installed and the end surface of the sealing gland (or housing) where the static ring seal ring is installed should be chamfered and trimmed to avoid damage to the moving and static ring seal rings during assembly.

4. Leakage caused by the medium

(1) After disassembly of most mechanical seals under corrosion or high temperature conditions, the auxiliary seals of the stationary ring and the movable ring are inelastic, and some have rotted, causing a large amount of leakage of the mechanical seal and even the phenomenon of shaft grinding. Due to the corrosive effect of high temperature, weak acid and weak alkali in the sewage on the static ring and the auxiliary rubber seal of the moving ring, the mechanical leakage is too large. The material of the moving and static ring rubber sealing ring is nitrile-40, which is not resistant to high temperature. It is not resistant to acid and alkali, and it is easy to corrode when the sewage is acidic and alkaline.

Solution: For corrosive media, the rubber parts should be fluorine rubber resistant to high temperature, weak acid and weak alkali.

(2) Mechanical seal leakage caused by solid particles and impurities. If solid particles enter the end face of the seal, it will scratch or accelerate the wear of the end face. The accumulation rate of scale and oil on the shaft (sleeve) surface exceeds the wear rate of the friction pair. As a result, the moving ring cannot compensate for the wear displacement, and the operating life of the hard-to-hard friction pair is longer than that of the hard-to-graphite friction pair, because the solid particles will be embedded in the sealing surface of the graphite sealing ring.

Solution: The mechanical seal of tungsten carbide to tungsten carbide friction pair should be selected in the position where solid particles are easy to enter. …

The above summarizes the common causes of leakage of mechanical seals. The mechanical seal itself is a kind of high-precision component with high requirements, and has high requirements on design, machining, and assembly quality. When using mechanical seals, various factors of the use of mechanical seals should be analyzed, so that the mechanical seals are suitable for the technical requirements and medium requirements of various pumps and have sufficient lubrication conditions, so as to ensure the long-term and reliable operation of the seals.

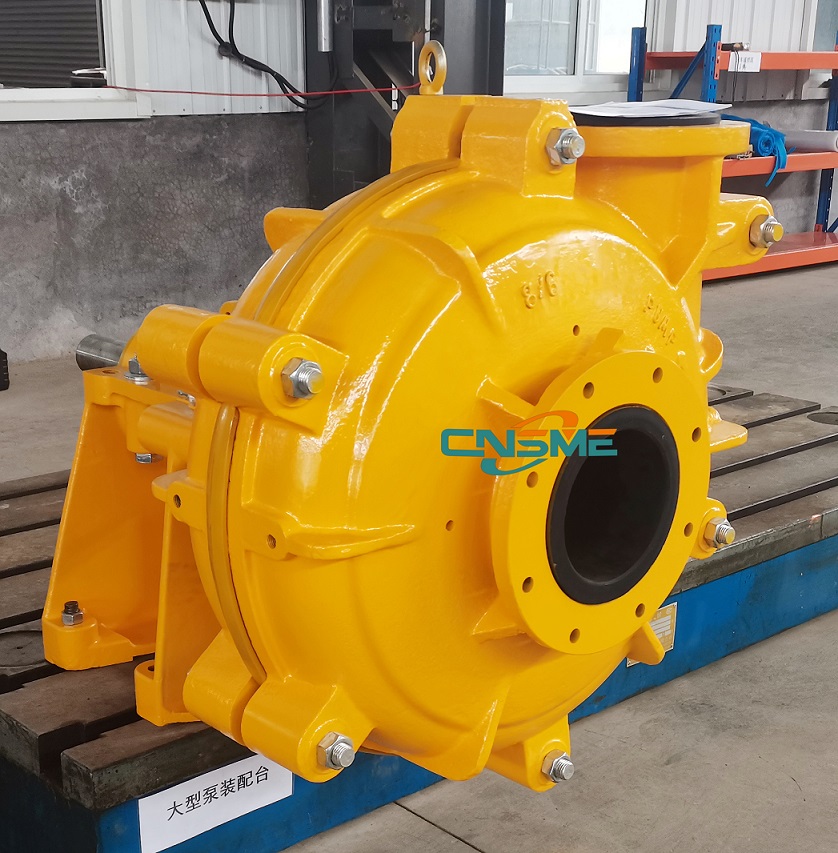

Warman AH Pumps Yellow
