Name: High Pressure Low Maintenance Slurry Pump with Long Service Life
Availability: InStock
Rating: 4.5 (89 reviews)

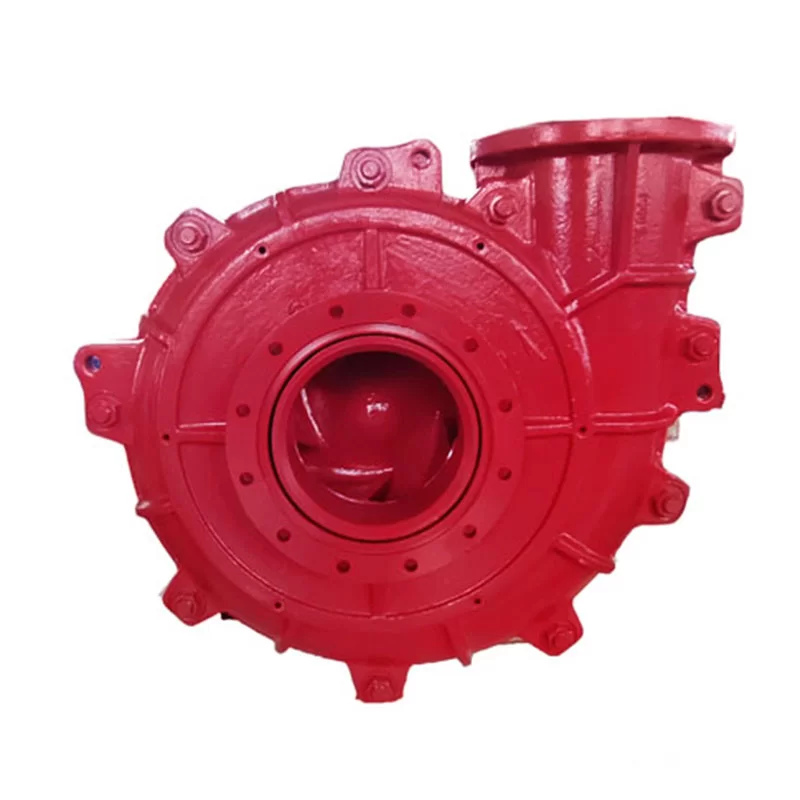

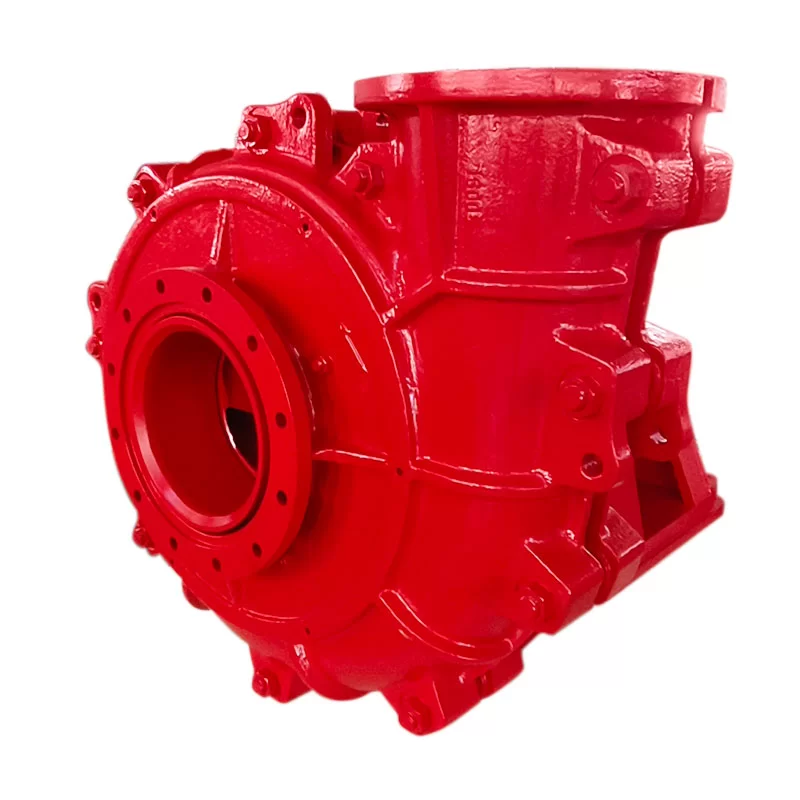

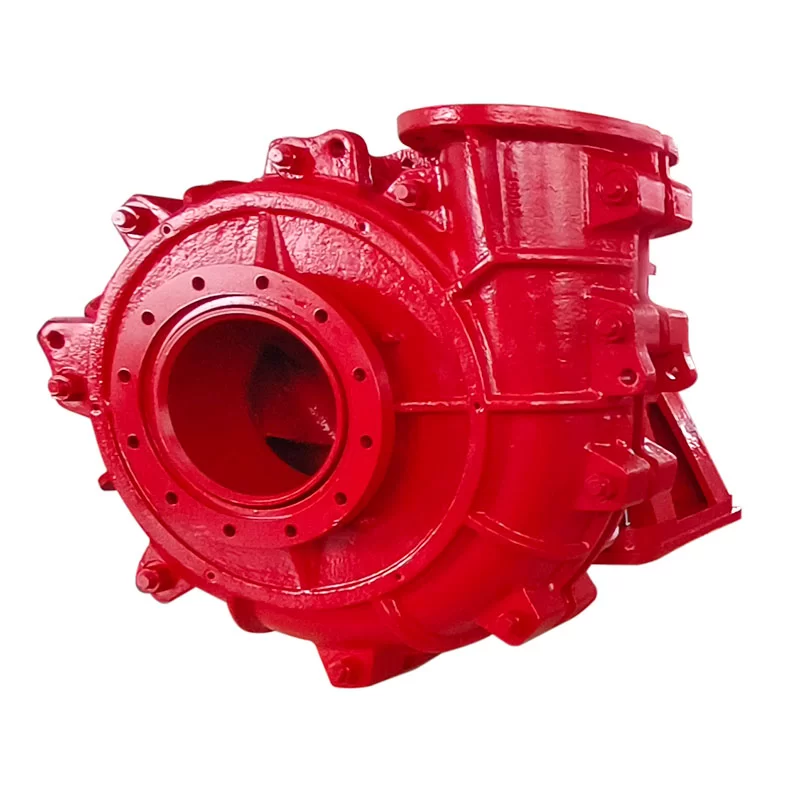

300S-L

300S-L type slurry pump is a kind of light slurry pump, which is widely used in many industries, such as beneficiation, metallurgy, coal and building materials. It has the structural characteristics of cantilever and horizontal centrifugal slurry pump. The outlet position can be installed and used at 45 ℃ intervals and rotated at eight different angles as needed, which provides great flexibility for on-site installation.

PDF Download

Contact Now

Product Details

Structural Features

Cantilever Horizontal Design: It adopts cantilever structure, and the overall layout is compact, which is convenient for installation and maintenance.

Rotatable Outlet: The position of the outlet can be installed at eight different angles at intervals of 45℃ according to the needs of the actual working conditions with strong adaptability

Material Features

Wear Resistant Liner: The pump body has replaceable wear resistant metal liner or rubber liner, which can effectively resist wear and extend the service life of the pump.

Wet-end Parts: Impellers, Volute Liner, frame plate liner insert and other wet-end parts are made of wear resistant metal or rubber materials. According to the needs of different working conditions, suitable materials can be selected to improve the wear resistance and corrosion resistance of the pump.

Features Of Use

High Speed, Small Volume, Light Weight: Compared with heavy-duty slurry pump, the 200E-M light slurry pump has high speed, small volume, light weight, and more flexible and efficient operation.

Wide Range Of Application: It is suitable for delivering fine particles, low-concentration slurry or corrosive slurry, which can meet the transportation needs under a variety of working conditions. The weight concentration of the conveying slurry generally does not exceed 30%, and it can also be used to transport high-concentration and low-abrasive slurry.

Sealing System

The light slurry pump has a variety of shaft sealing systems, which can adopt packing seals, expeller seals, mechanical seals. Users can choose the most appropriate sealing method according to the specific working conditions and medium characteristics to ensure the reliable operation and sealing performance of the pump.

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

Model	Allowable	Clear Water Performance
	Max. Power	Capacity Q		Head H	Speed n	Eff. η	NPSH	Impeller Dia.
	(kw)	m3/h	l/s	(m)	(r/min)	(%）	(m)	(mm)
300S-L	560	468-2538	130-708	8-60	400-950	79	2-10	653

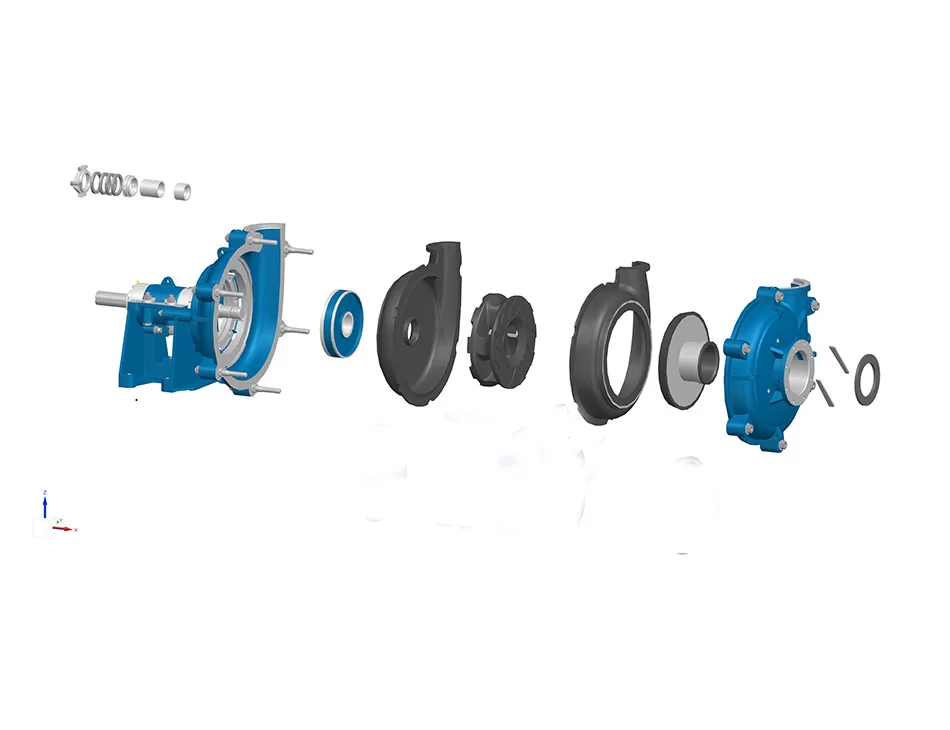

EXPELELR-SEAL

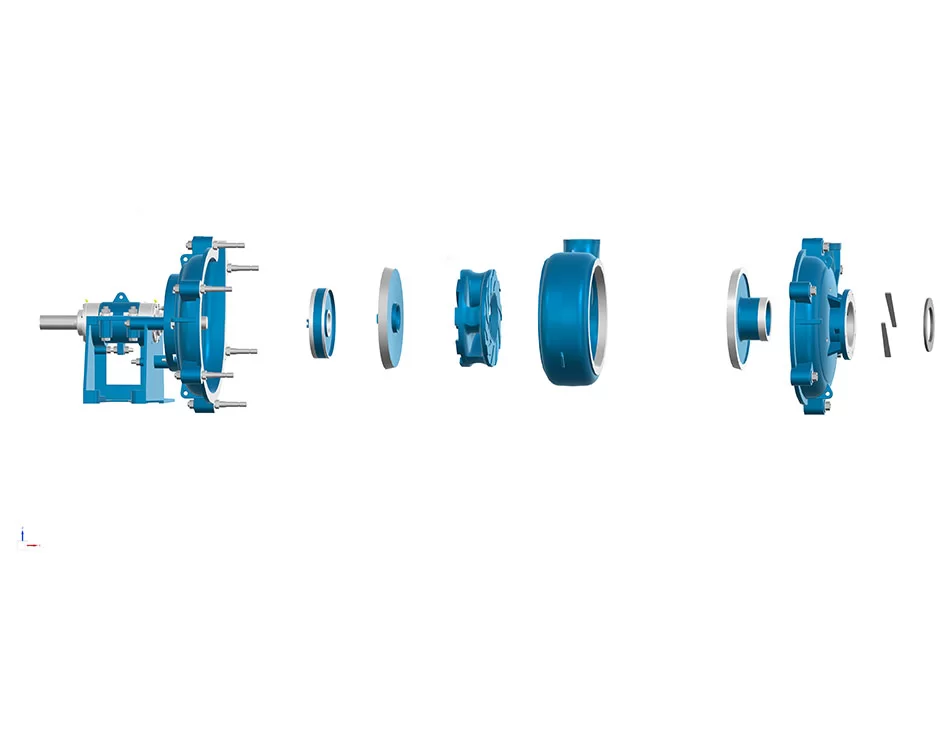

GLAND-SEAL

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*Name

*Phone

*Email

*Message

Related News

Oct 31,25

13 Sets of hard metal lined slurry pump 50ZJ-A50 coupled with YE2-280S-4-75Kw electric motor, shipped to our customer in Kazakhstan.

13 Sets of hard metal lined slurry pump 50ZJ-A50 coupled with YE2-280S-4-75Kw electric motor, shipped to our customer in Kazakhstan. Specifications of

Dec 05,25

Vietnam Client Visit Update | On-Site Discussion for Vertical Slurry Pump Project Optimization

On November 30, 2025, our technical and service team began a 10-day business visit to Vietnam, meeting mining clients face to face to review the operation of vertical sump pumps and discuss technical optimization for upcoming projects.

Jan 04,26

How to Select the Inlet and Outlet Pipe Diameters for Slurry Pumps

The selection of inlet and outlet pipe diameters for slurry pumps should follow the core principle that “the inlet pipe diameter shall not be smaller than the pump suction diameter, and the outlet pipe diameter shall be matched to the flow rate and head requirements.”

Pipe sizing should be designed around three key dimensions—slurry characteristics, pump parameters, and pipeline layout—with the ultimate goal of achieving anti-cavitation, anti-blockage, and low-energy-consumption operation, thereby ensuring stable and efficient slurry transportation.

Mar 12,26

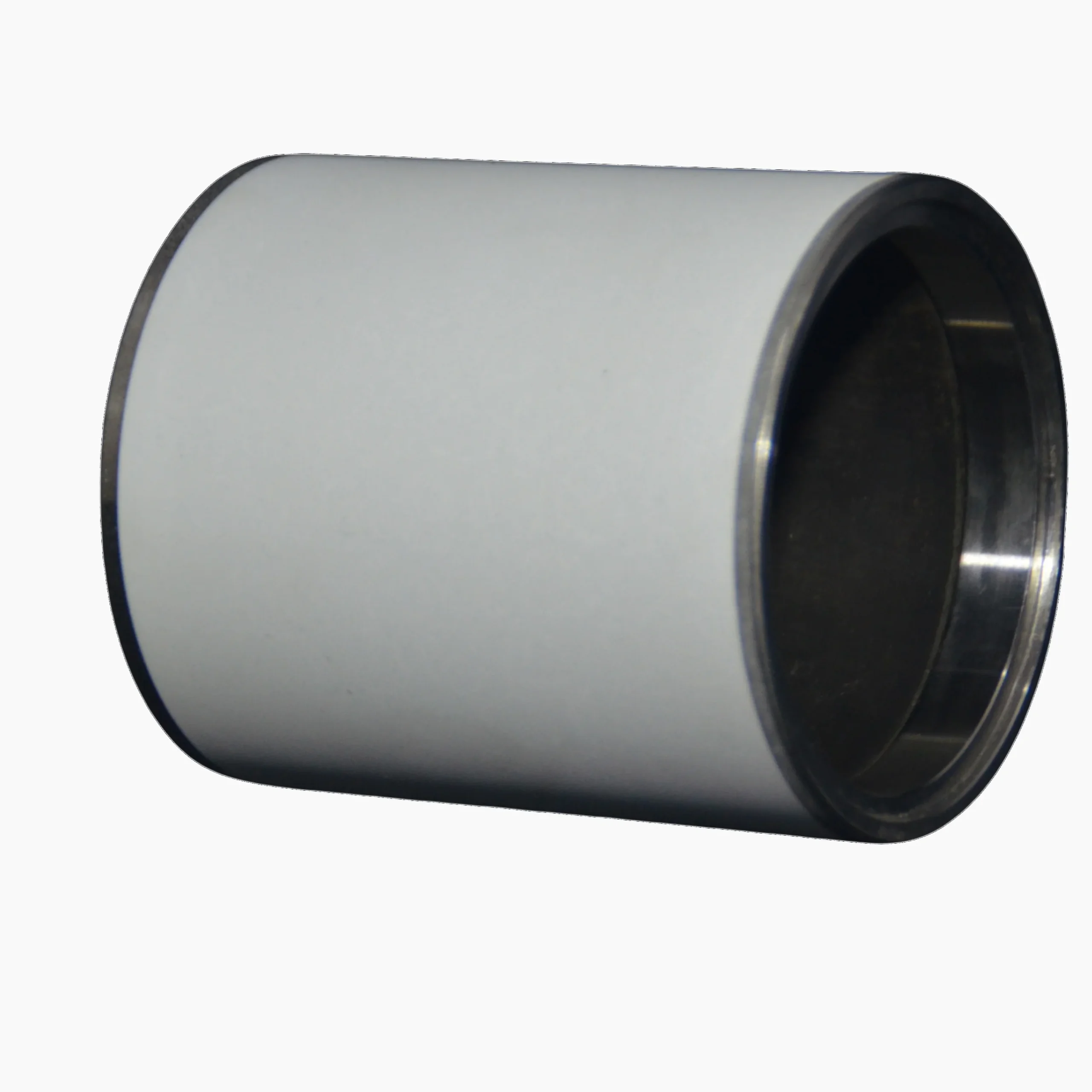

China Slurry Pump Shaft Sleeve Manufacturer Providing Quality Solutions
