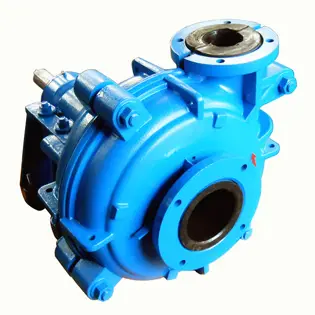

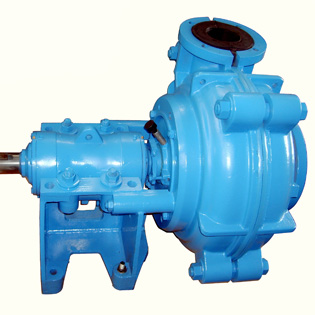

Horizontal Rubber Lined Slurry Pump SHR/100D

Short Description:

Pump Model: SHR/100D (6/4D-AHR) SHR/100D is equivalent to 6/4D-AHR, a 4” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/100D is the most popular pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic conveya…

–>

Brand: CNSME

Model Number: 100PE-PCH Single Shell Slurry Pump

Model Number: CE/ISO

Place of Origin: Hebei,China

Minimum Order Quantity: 1set

Delivery Time: 7-10 days

Payment Terms: T/T, Western Union

Supply Ability: 30 Sets per Month

Packaging Details: Plywood Crate

PDF Download

Contact Now

Product Details

Pump Model: SHR/100D (6/4D-AHR)

SHR/100D is equivalent to 6/4D-AHR, a 4” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/100D is the most popular pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of natural rubber R55, a black soft natural rubber, which has superior erosion resistance to all other materials in fine particle slurry applications. The high erosion resistance of R55 is provided by the combination of its high resilience, high tensile strength and low Shore Hardness.

Rubber pumps can also be used for applications where metal pumps are widely used, when the pH is 5-8. But they are more often used to handle fine articles with small solids.

Applications:

Mine Dewatering; Sand Pumping; Manure Slurry; Oil Sands; Tailings and Aggregate; Coal Production etc.

Material Construction:

Part Description	Standard	Alternative
Impeller	R55	Polyurethane
Cover Plate Liner	R55	Polyurethane

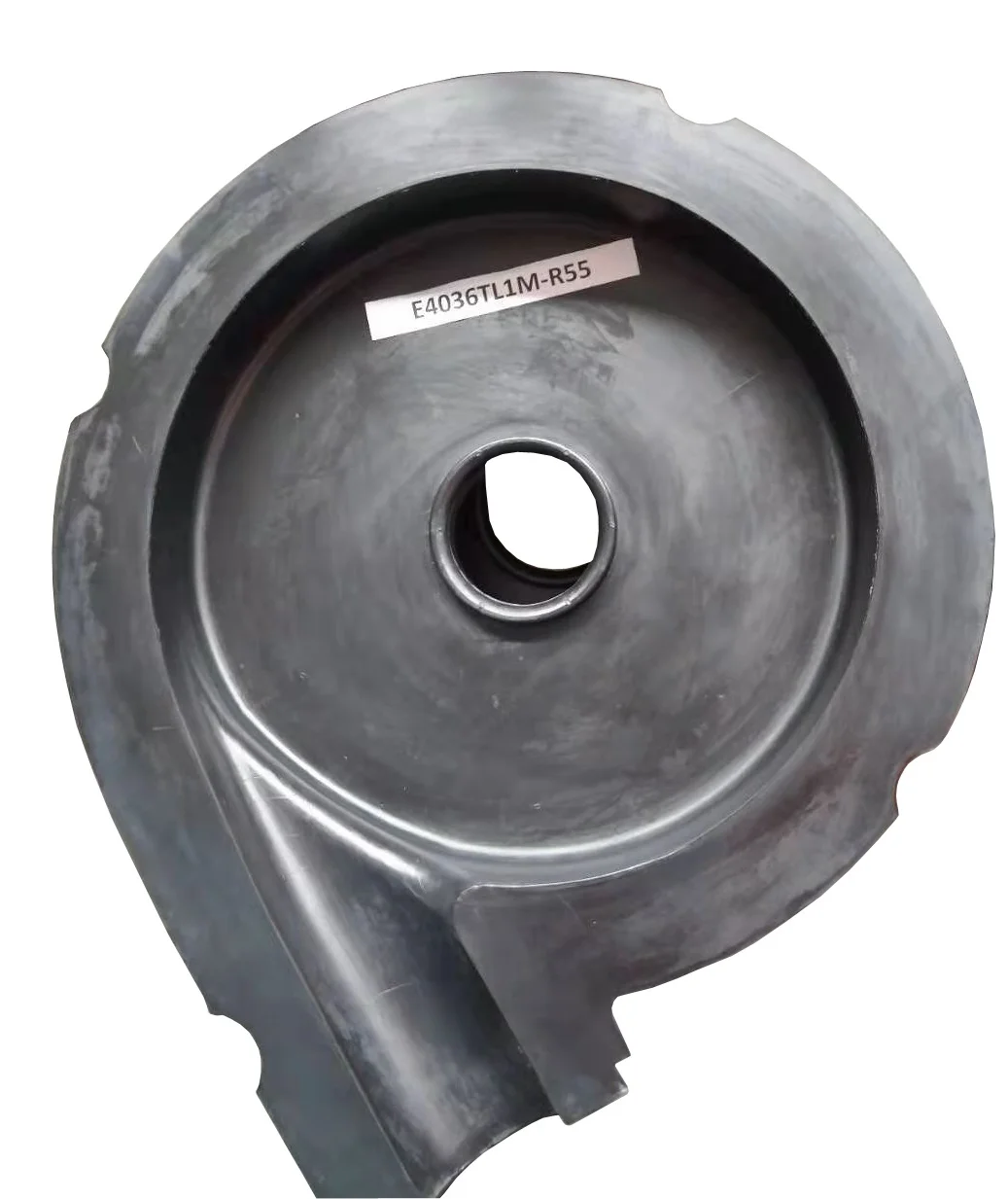

Frame Plate Liner	R55	Polyurethane
Throatbush	R55	Polyurethane
Split Outter Casings	Grey Iron	Ductile Iron
Shaft	Carbon Steel	SS304, SS316
Shaft Sleeve	SS304	SS316, Ceramic, Tungstan Carbide
Shaft Seal	Expeller Seal	Gland Packing, Mechanical Seal
Bearings	ZWZ, HRB	SKF, Timken, NSK etc.

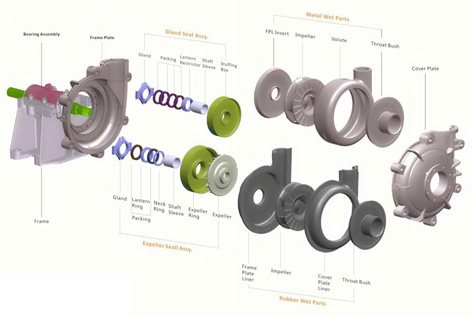

Construction & Structure:

Specifications:

Flowrate: 144-324m3/hr; Head: 12-45m; Speed: 800-1350rpm; Bearing Assembly: DAM005M

(Optional Bearing Assembly: DDAM005M, E005M, EE005M)

Impeller: 5-Vane Closed Type with Vane Diameter: 365mm; Max. Passage Size: 44mm; Max. Efficiency: 64%

Download as PDF

–>

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*Name

*Phone

*Email

*Message

Related News

Oct 31,25

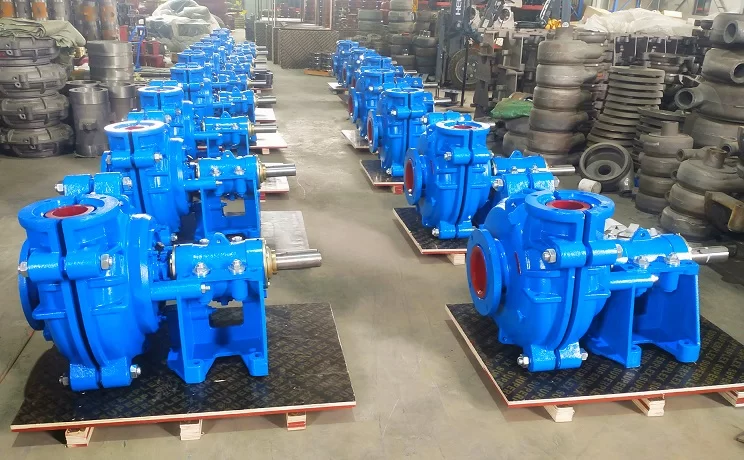

Shipment of 16 Units of 6/4D-AH

At CNSME, we manufacture many pumps and parts that are 100% interchangeable with Warman OEM Slurry pumps. We have sufficient spare parts in stock for quick

Oct 31,25

CNSME’s new pumping station is under preparation

CNSME's new pumping station is under preparation

Feb 05,26

Essential Warman Pump Parts for Reliable Slurry Handling Solutions

Warman pump parts are critical components in a vast range of industries, from mining and mineral processing to wastewater treatment and heavy-duty industrial applications. These robust components, specifically designed for handling abrasive slurries, are essential for maintaining operational efficiency and minimizing downtime. Understanding the intricacies of these parts – their materials, construction, and maintenance – is paramount for professionals in these sectors, ensuring not only cost-effectiveness but also safety and environmental responsibility. The global demand for efficient and reliable slurry pumping solutions drives continuous innovation in warman pump parts technology. The importance of warman pump parts extends beyond purely industrial applications. In regions facing water scarcity, these pumps play a crucial role in water management and irrigation systems. Similarly, in disaster relief efforts, their ability to quickly move large volumes of water and debris is invaluable.

Jan 29,26

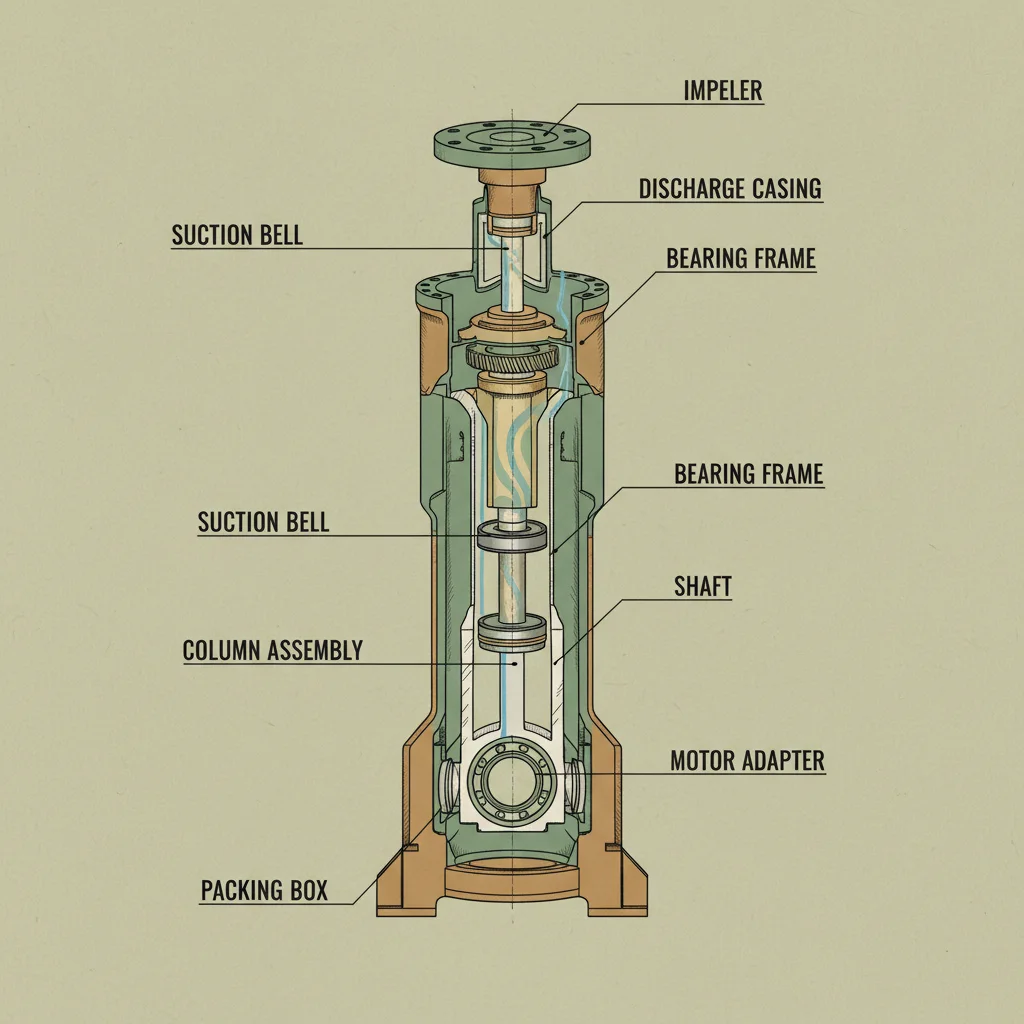

Optimizing Performance and Reliability in Vertical Slurry Pump Systems

To be honest, things have been moving fast in the pump world lately. Everyone's talking about efficiency, energy savings… and, of course, how to squeeze every last drop of performance out of these things. I've been seeing a lot of designs trying to do too much, too quickly. They end up overcomplicated, a nightmare to maintain out in the field. Have you noticed that? It’s like engineers forget these pumps live in the real world, covered in muck and getting bashed around. You think you've got a clever solution on paper, but then you get to the factory, and the welders are looking at you sideways because your design is impossible to actually build without a ton of extra time and expense. I encountered this at a foundry in Zhejiang last time; they were trying to use a new alloy for the impeller, said it was 'revolutionary'. Turned out it was brittle as hell and cracked during the first stress test. Anyway, I think simplicity is key. A well-designed, robust vertical slurry pump that's easy to repair… that's worth its weight in gold.

Feb 03,26

Optimizing Dredge Pump Performance Reliability and Practical Maintenance

Look, I've been running around construction sites for over a decade now, and honestly, the biggest thing I’m seeing lately is everyone chasing higher flow rates. It's like a horsepower war, you know? Everyone wants the biggest, baddest dredge pump on the block. They think bigger equals better. But… it's not always that simple. Have you noticed, a lot of these designs, they look fantastic on paper, all sleek and optimized. But then you get them on-site, and they're a nightmare to maintain. Too many tight spaces, proprietary fittings, stuff like that. It’s like the engineers designing these things have never actually touched a wrench. They forget that someone has to disassemble this thing in the pouring rain at 3 AM. And it's not just the design. The materials...people are constantly trying to cut corners. We've really started standardizing on high-chrome iron for the impeller and casing. It’s heavy, sure, smells a bit like metal shavings when you first machine it, and getting a good weld requires a specialist, but it holds up.

Jan 31,26

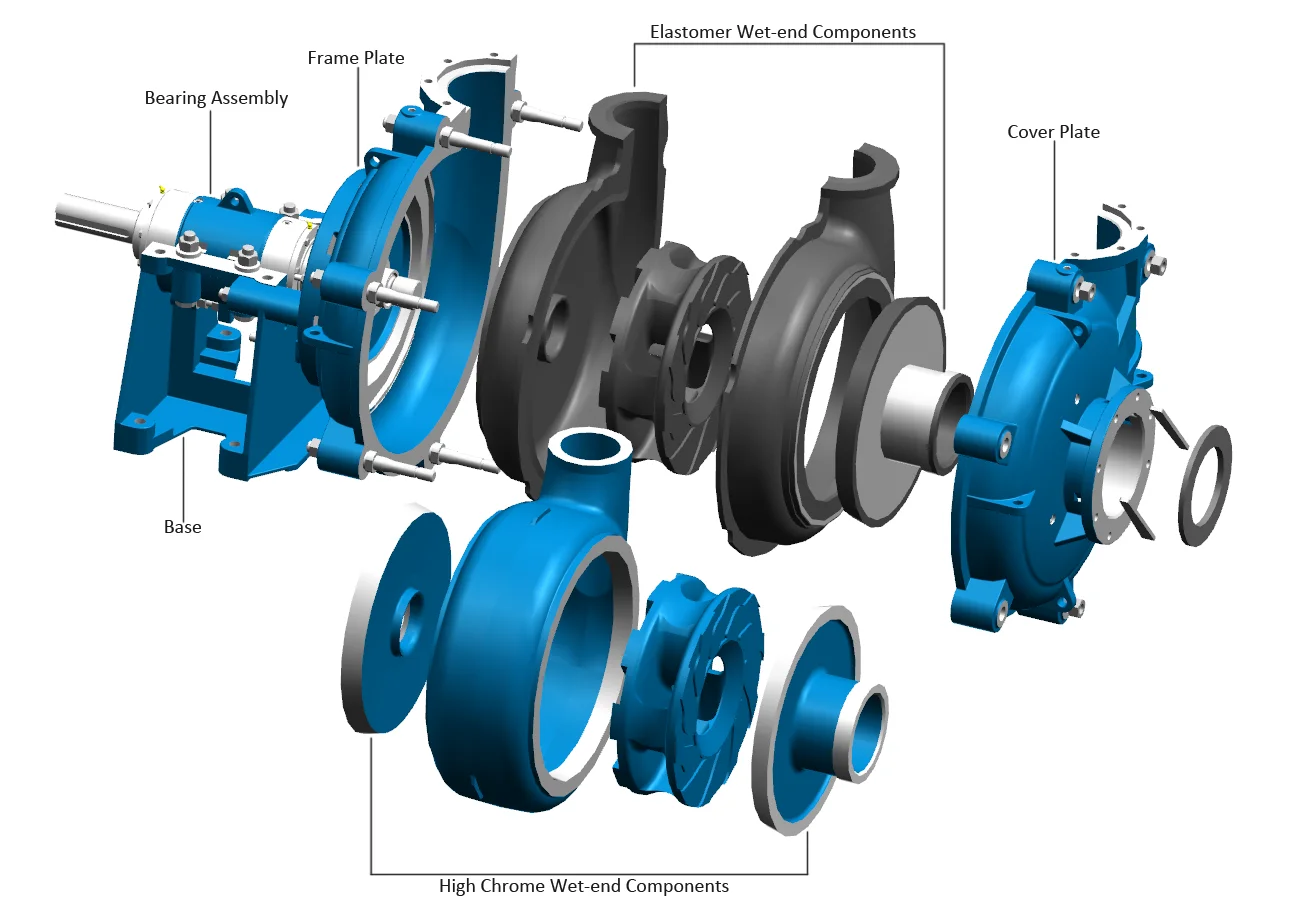

Optimizing Performance with Robust Rubber Lined Slurry Pump Solutions
