Name: High Chrome Warman Slurry Pump Parts & Impeller – Durable Alloy
Availability: InStock
Rating: 4.5 (89 reviews)

Sand Dredging Pump SG/150E

Short Description:

Sand Dredging Pump Model: SG/150E (8/6E-G) Sand Dredging Pump SG series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation. Vertical Tank Froth Pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC. The Sand Dredging Pumps are ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, pho…

–>

Brand: CNSME

Model Number: 400ST-L

Model Number: CE/ISO9001

Place of Origin: Hebei,China

Minimum Order Quantity: 1set

Delivery Time: 7-10 days

Payment Terms: T/T, Western Union

Supply Ability: 30 Sets per Month

Packaging Details: Plywood Crate

Sand Pumps : River Dredging Pumps

PDF Download

Contact Now

Product Details

Sand Dredging Pump

Model: SG/150E (8/6E-G)

Sand Dredging Pump SG series have been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation.

Vertical Tank Froth Pumps are supplied with parts in wear resistant high chrome iron alloy, with a nominal hardness of 58-65HRC.

The Sand Dredging Pumps are ideal for all applications involving handling of air entrained slurries, such as flotation froth in base metal concentrators, phosphate and apatite washing plants and calcium carbonate upgrading plants. The pump can also be used as a mixing and distribution unit, where dry powder has to be mixed with water.

Material Construction:

Description	Standard Material	Optional Material
Impeller	A05
Door	A05
Bowl	A05
Front Cover	A05
Back Liner	A05
Shaft	Carbon Steel K1045	SUS304, SUS316(L)
Shaft Sleeve	3Cr13	SUS304, SUS316(L)
Shaft Seal	Gland Packing Seal	Expeller Seal, Mechanical Seal

Application of Sand Dredging Pumps:

Sand and Gravel, Hydraulic Mining, Sugar Beet & Other Root Vegetables, Slag Granulation; Tunnelling.

Specifications:

Pump Model	S×D (inch)	Allowable Max. Power (kw)	Clear Water Performance					Impeller
			Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
			m³/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
SG/100D	6×4	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
SG/150E	8×6	120	126-576	6-45	800-1400	60	3-4.5		391
SG/200F	10×8	260	216-936	8-52	500-1000	65	3-7.5		533
SG/250G	12×10	600	360-1440	10-60	400-850	65	1.5-4.5		667
SG/300G	14×12	600	432-3168	10-64	300-700	68	2-8		864
SG/400T	18×16	1200	720-3600	10-50	250-500	72	3-6		1067

Structure:

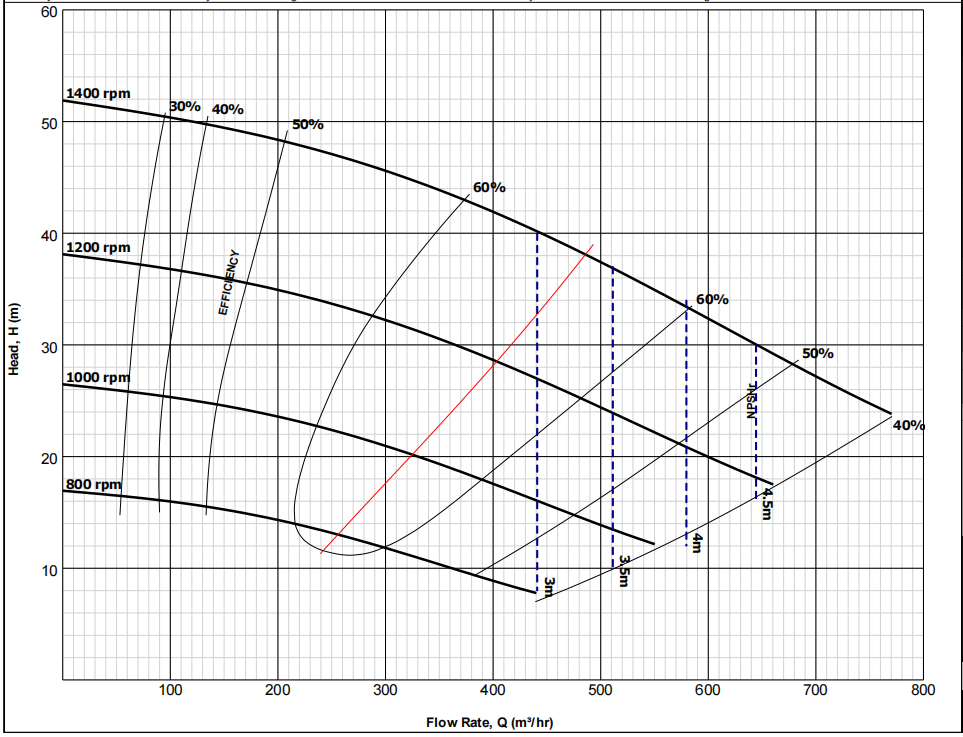

Performance Curve:

Download as PDF

–>

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*Name

*Phone

*Email

*Message

Related News

Oct 31,25

We’ll be at Bauma Shanghai, and we are looking forward to seeing you there. Remember our stand W5. 284.

We'll be at Bauma Shanghai, and we are looking forward to seeing you there. Remember our stand W5. 284.

Feb 26,26

Comprehensive Guide to OEM Slurry Pump Volute Liner Supplier Selection

Finding a reliable OEM slurry pump volute liner supplier is critical for maintaining the efficiency and longevity of your slurry pumping systems.

Oct 31,25

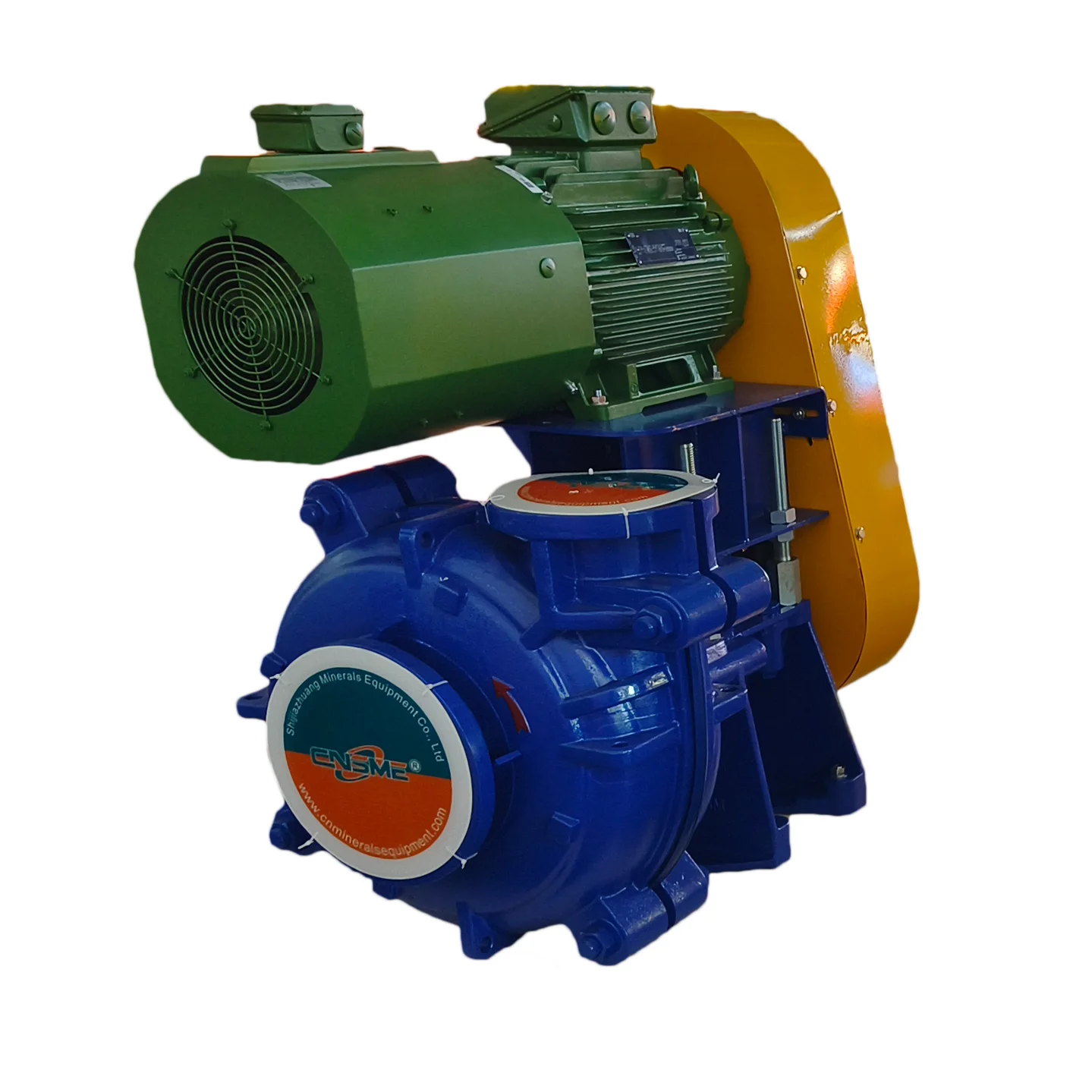

Shipment of 16 Units of 6/4D-AH
