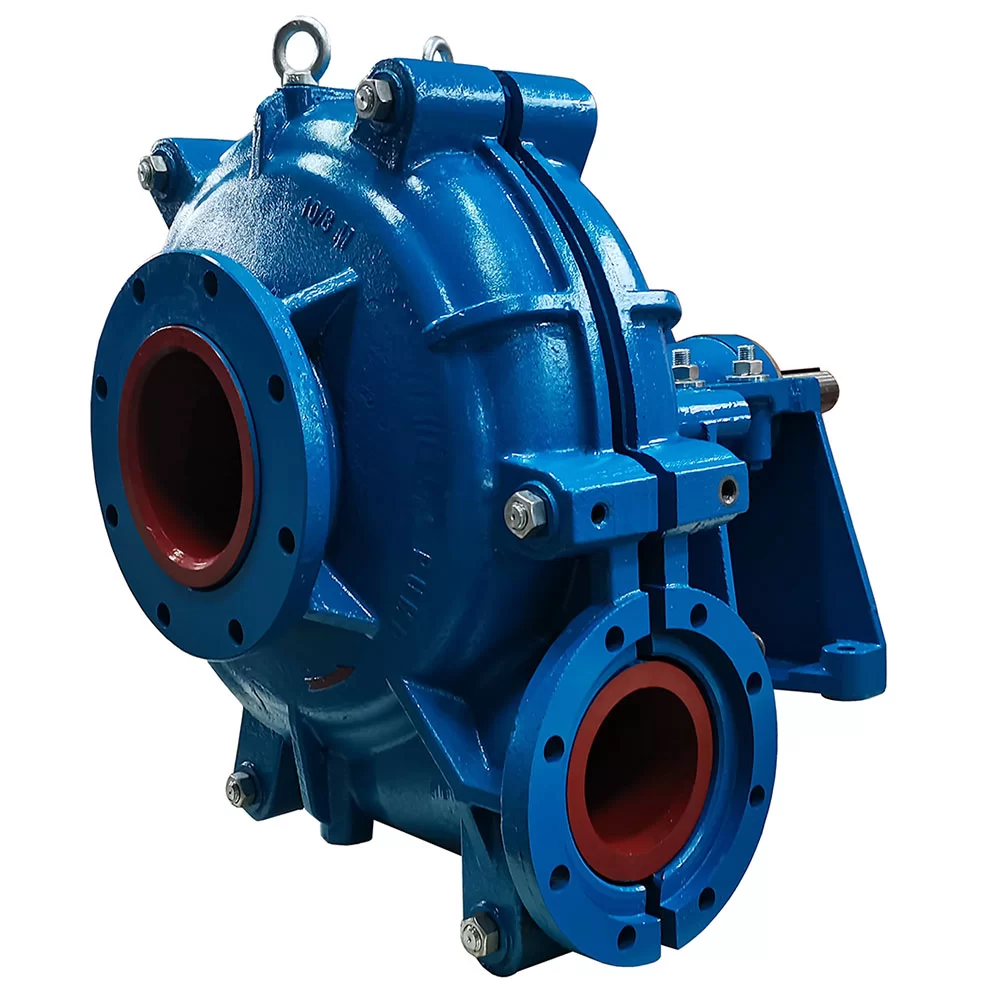

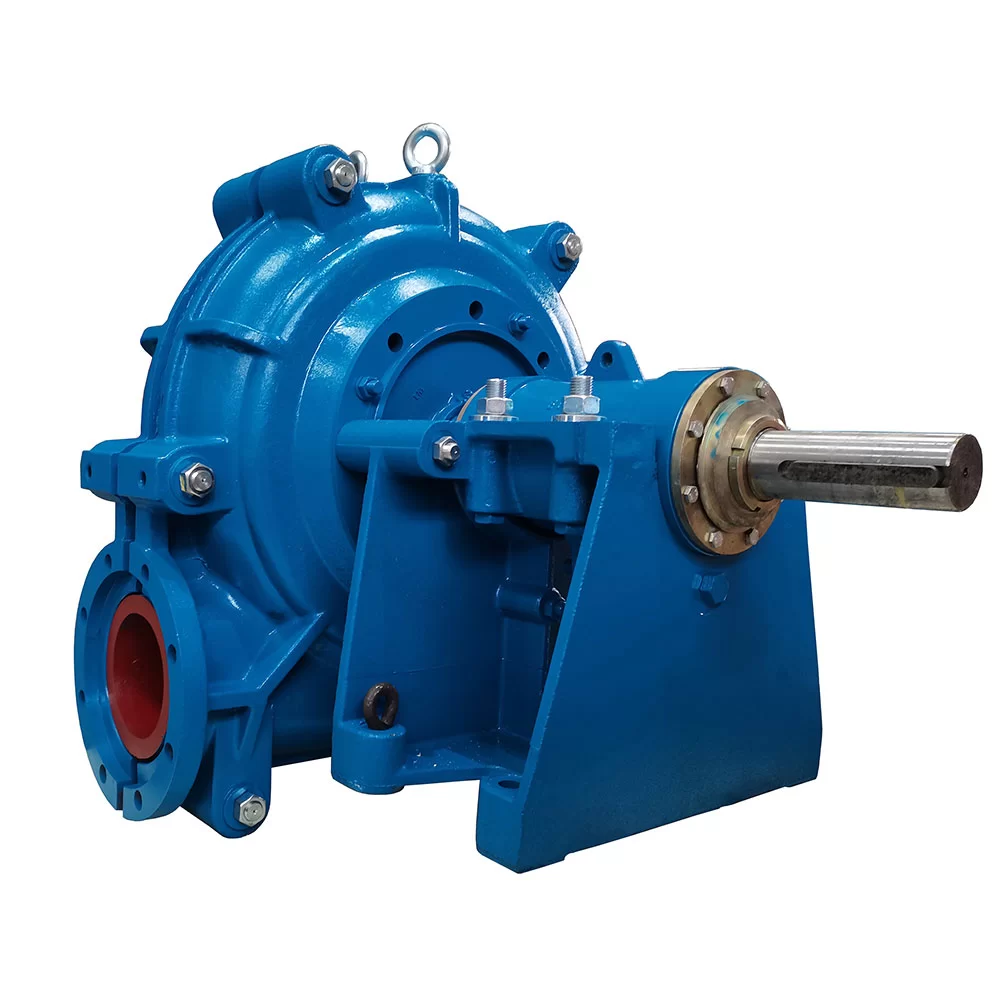

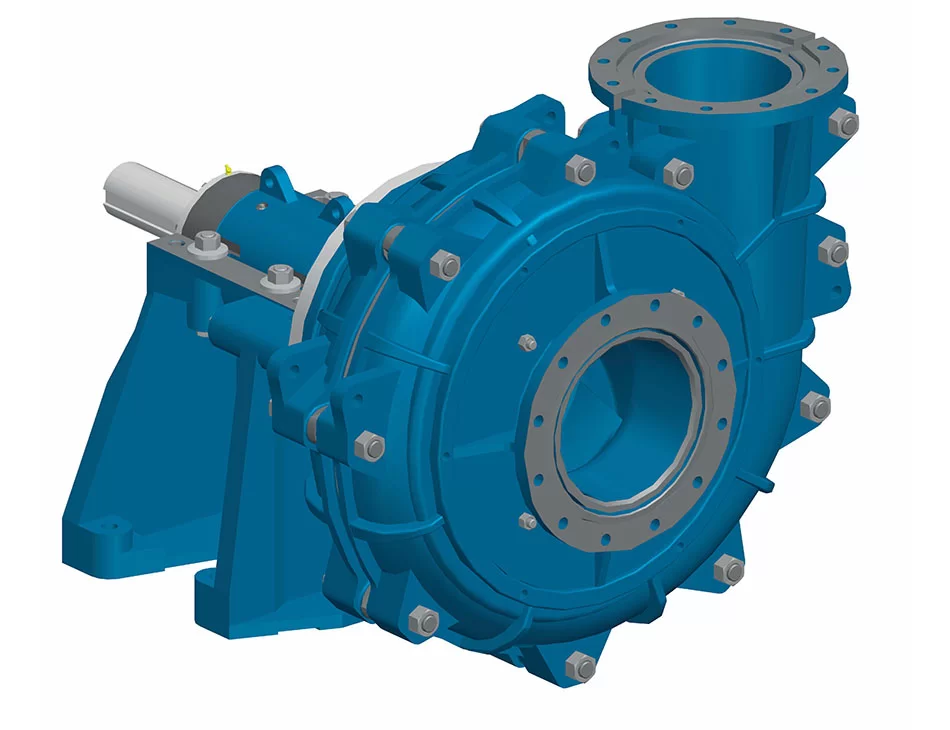

200E-M light slurry pump is a kind of L type slurry pump, which is widely used in many industries, such as beneficiation, metallurgy, coal and building materials. It has the structural characteristics of cantilever and horizontal centrifugal slurry pump. The outlet position can be installed and used at 45 ℃ intervals and rotated at eight different angles as needed, which provides great flexibility for on-site installation.

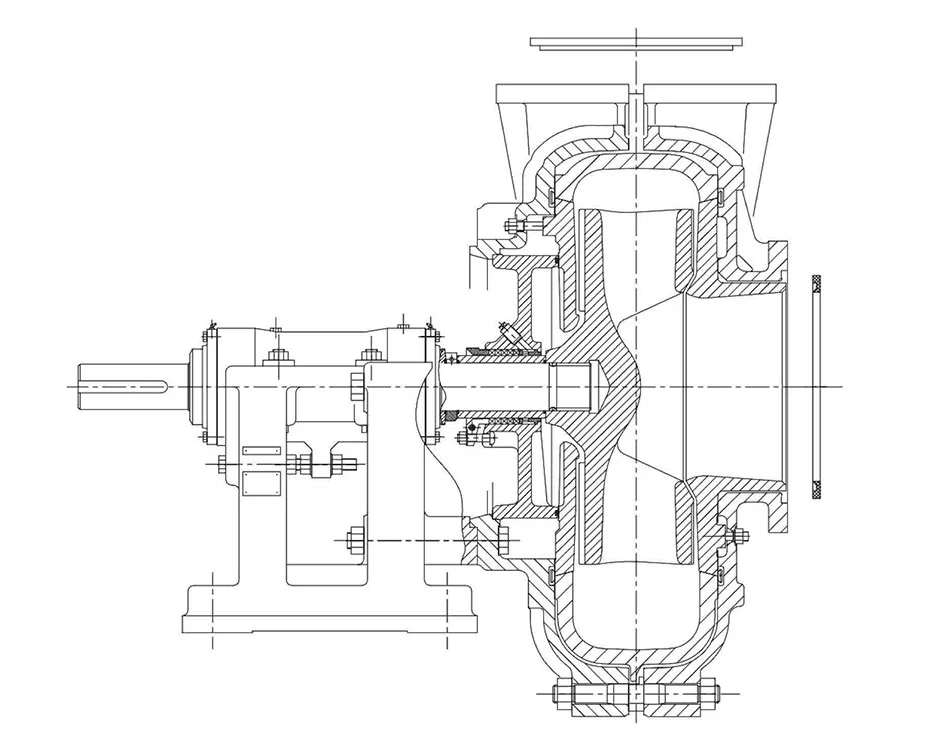

Structural Features
Cantilever Horizontal Design: It adopts cantilever structure, and the overall layout is compact, which is convenient for installation and maintenance.
Rotatable Outlet: The position of the outlet can be installed at eight different angles at intervals of 45℃ according to the needs of the actual working conditions with strong adaptability.
Material Features
Wear Resistant Liner: The pump body has replaceable wear resistant metal liner or rubber liner, which can effectively resist wear and extend the service life of the pump.

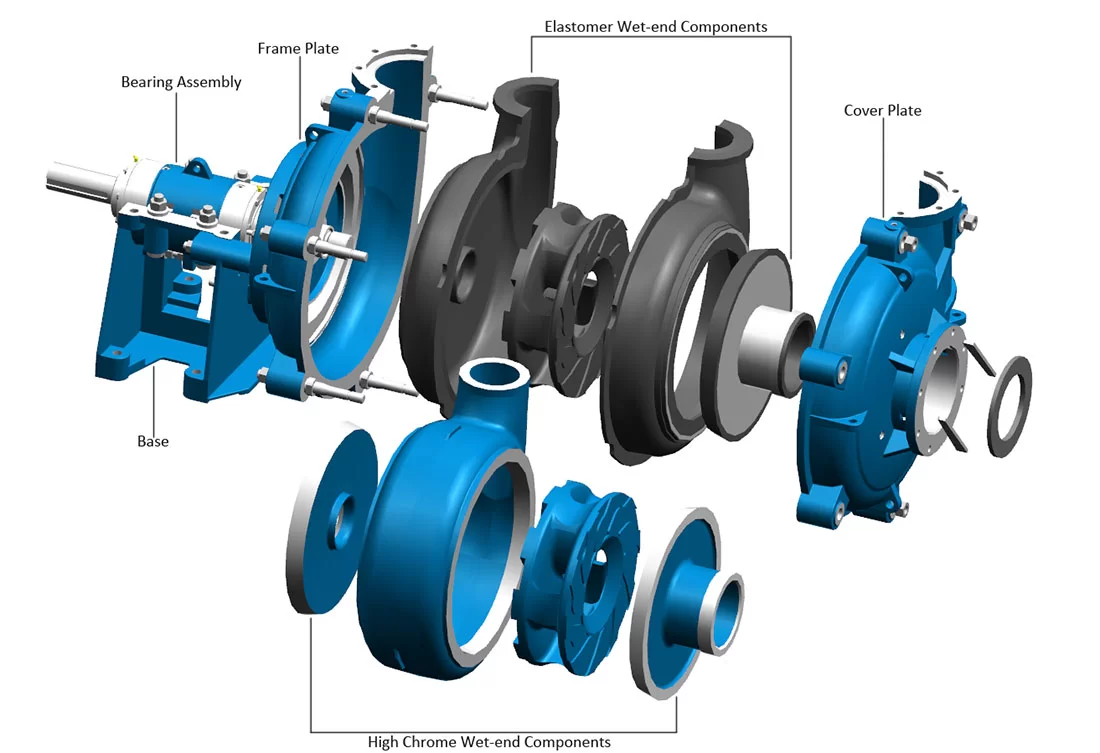

Wet-end Parts: Impellers, Volute Liner, frame plate liner insert and other wet-end parts are made of wear resistant metal or rubber materials. According to the needs of different working conditions, suitable materials can be selected to improve the wear resistance and corrosion resistance of the pump.
Features Of Use
High Speed, Small Volume, Light Weight: Compared with heavy-duty slurry pump, the 200E-M light slurry pump has high speed, small volume, light weight, and more flexible and efficient operation.
Wide Range Of Application: It is suitable for delivering fine particles, low-concentration slurry or corrosive slurry, which can meet the transportation needs under a variety of working conditions. The weight concentration of the conveying slurry generally does not exceed 30%, and it can also be used to transport high-concentration and low-abrasive slurry.
Sealing System
The 200E-M light slurry pump has a variety of shaft sealing systems, which can adopt packing seals, expeller seals, mechanical seals. Users can choose the most appropriate sealing method according to the specific working conditions and medium characteristics to ensure the reliable operation and sealing performance of the pump.
EXPELELR-SEAL

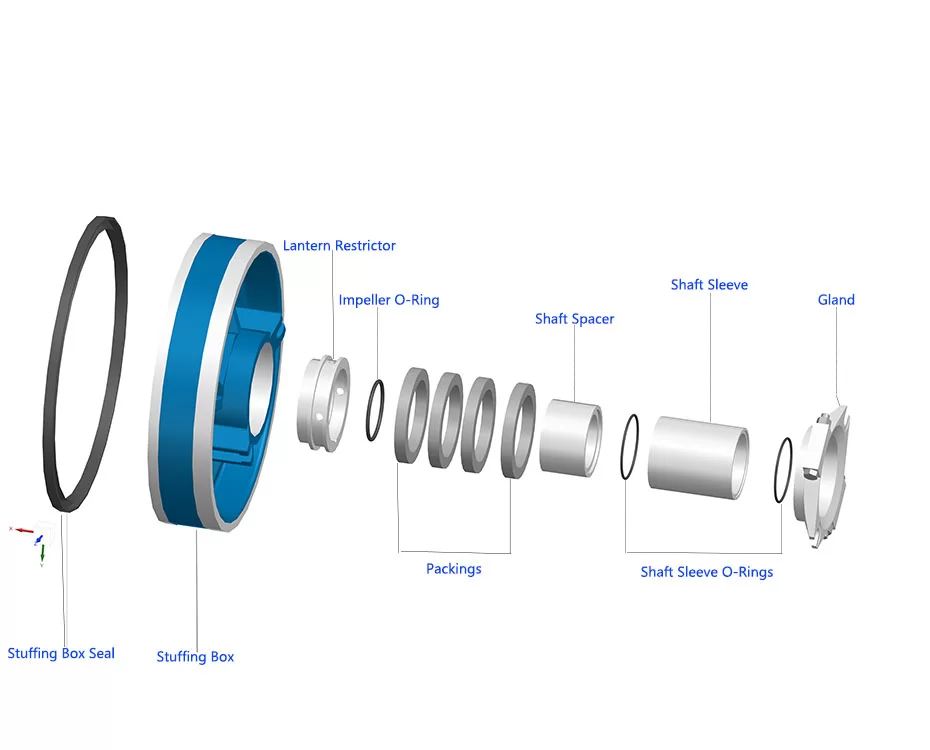

GLAND-SEAL
Drive Models
The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

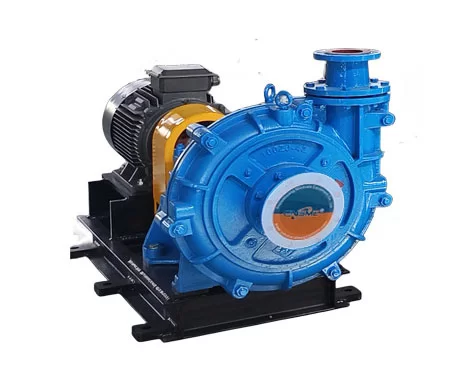

DC

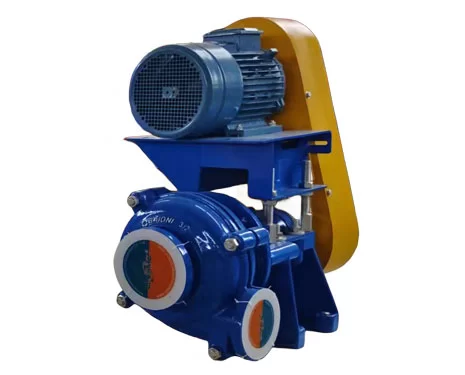

CV

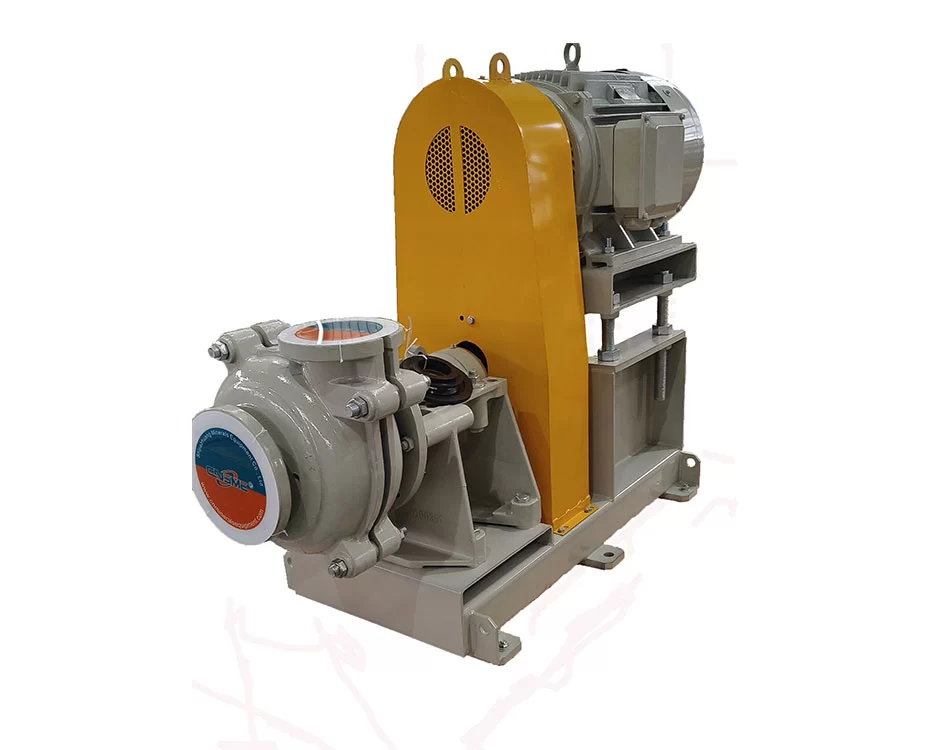

ZVZ
CLZ
Model | Allowable | Clear Water Performance |
| |||||
Max. Power | Capacity Q | Head H | Speed n | Eff. η | NPSH | Impeller Dia. | ||
(kw) | m3/h | l/s | (m) | (r/min) | (%） | (m) | (mm) | |
200E-M | 120 | 234-910 | 65-235 | 9.5-40 | 600-1100 | 64 | 3-6 | 457 |
