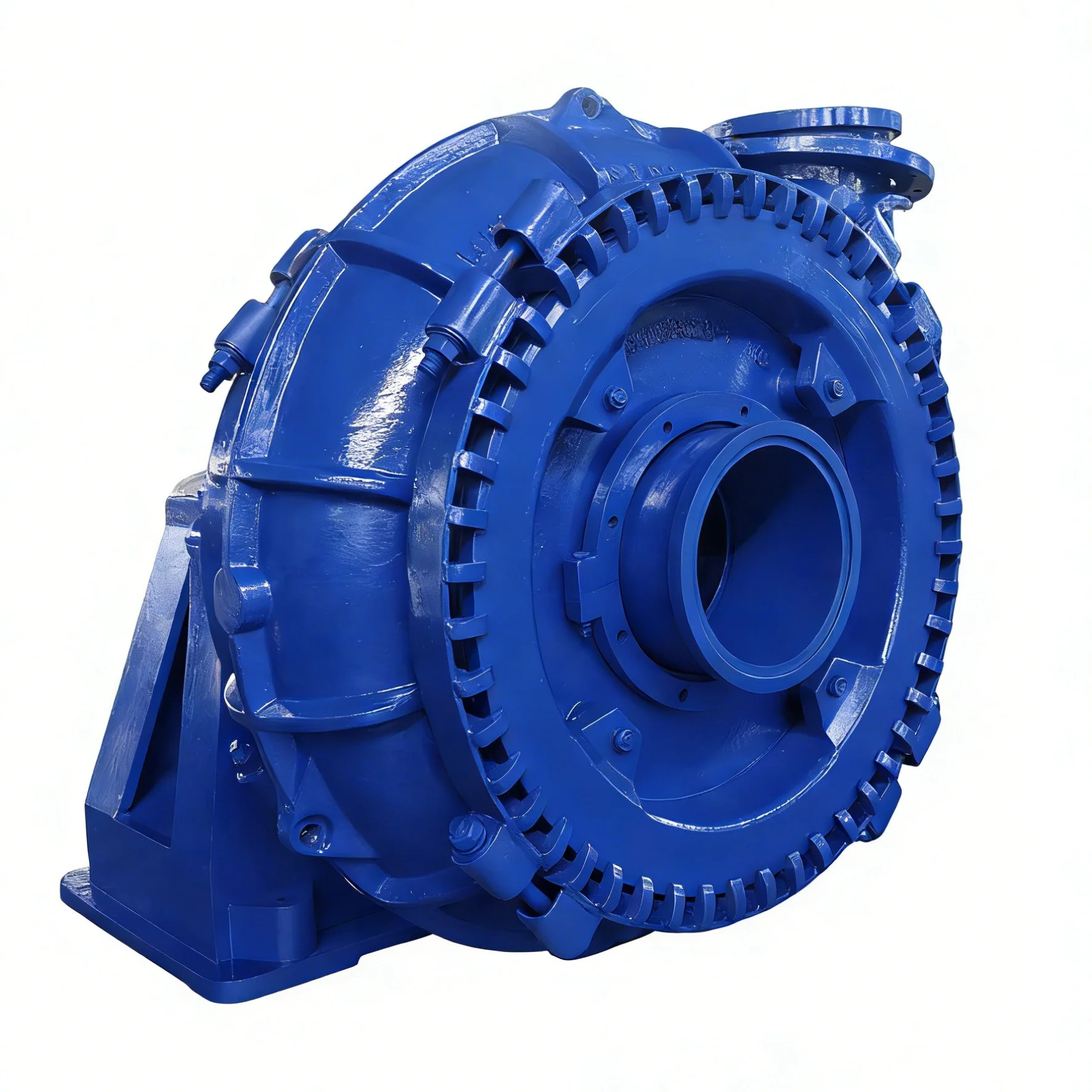

14/12G-G Gravel Pump Heavy Duty Large Particle Slurry Pump

The 14/12 gravel pump is a heavy-duty centrifugal slurry pump designed for handling extremely abrasive slurries containing large solid particles. With a large flow capacity, high efficiency, and strong structural strength, it is widely used in dredging, mining, sand and gravel transportation, and other demanding applications.

PDF Download

Contact Now

Product Details

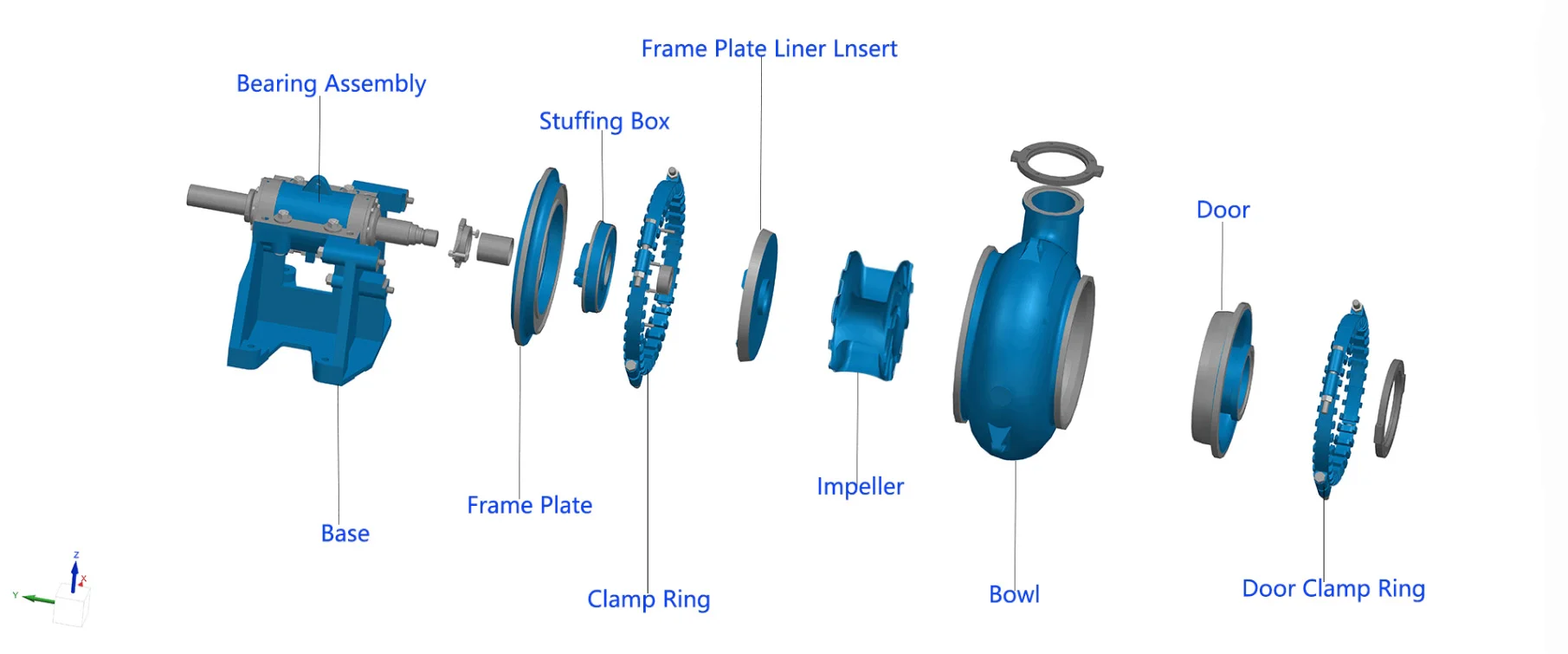

Structure OF 14/12G-G Gravel Pump

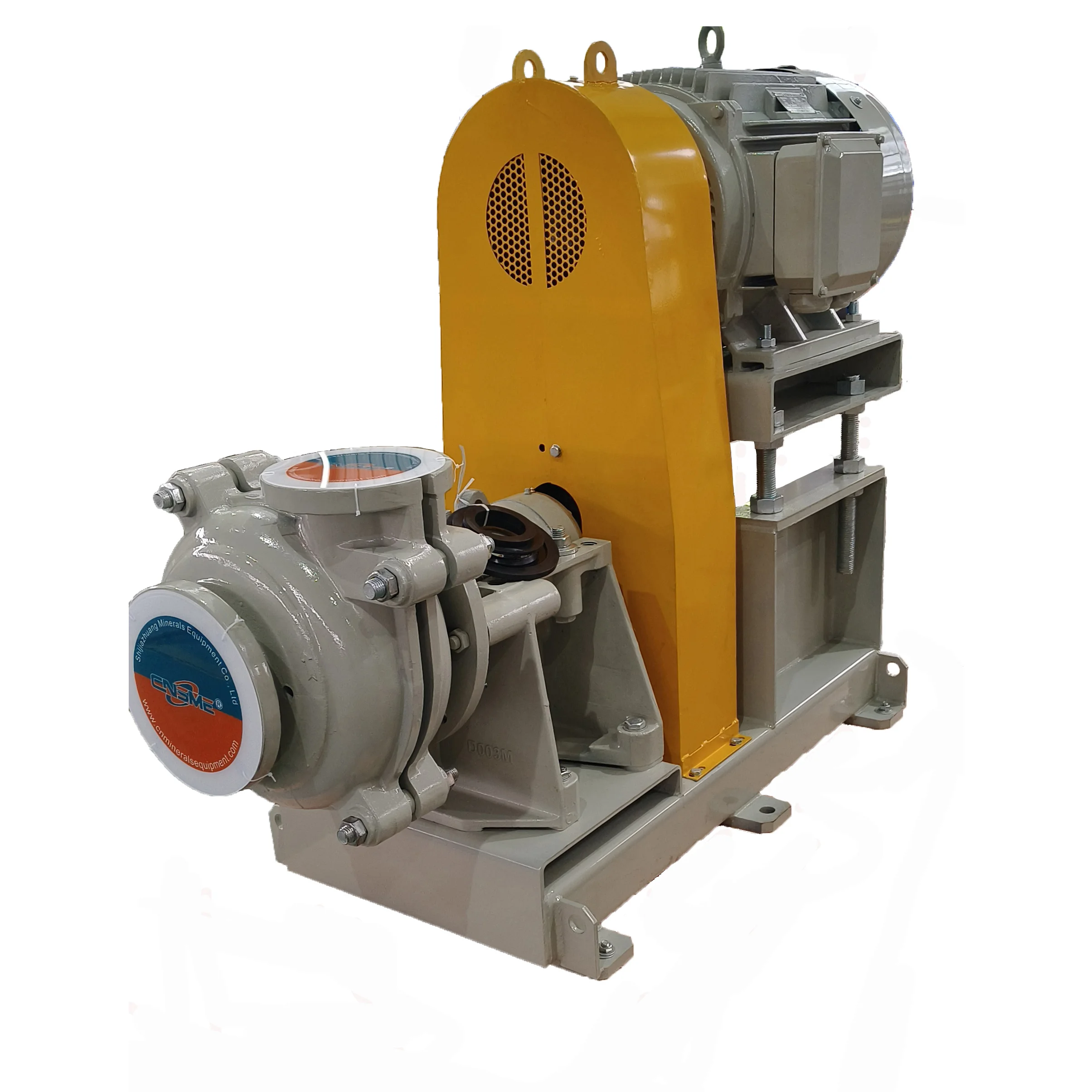

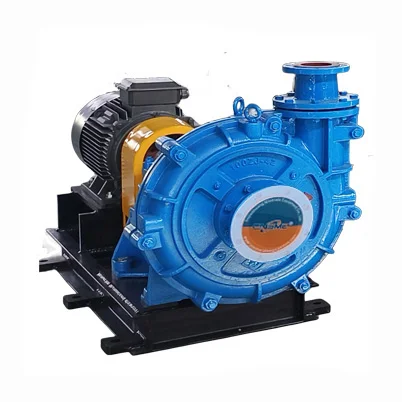

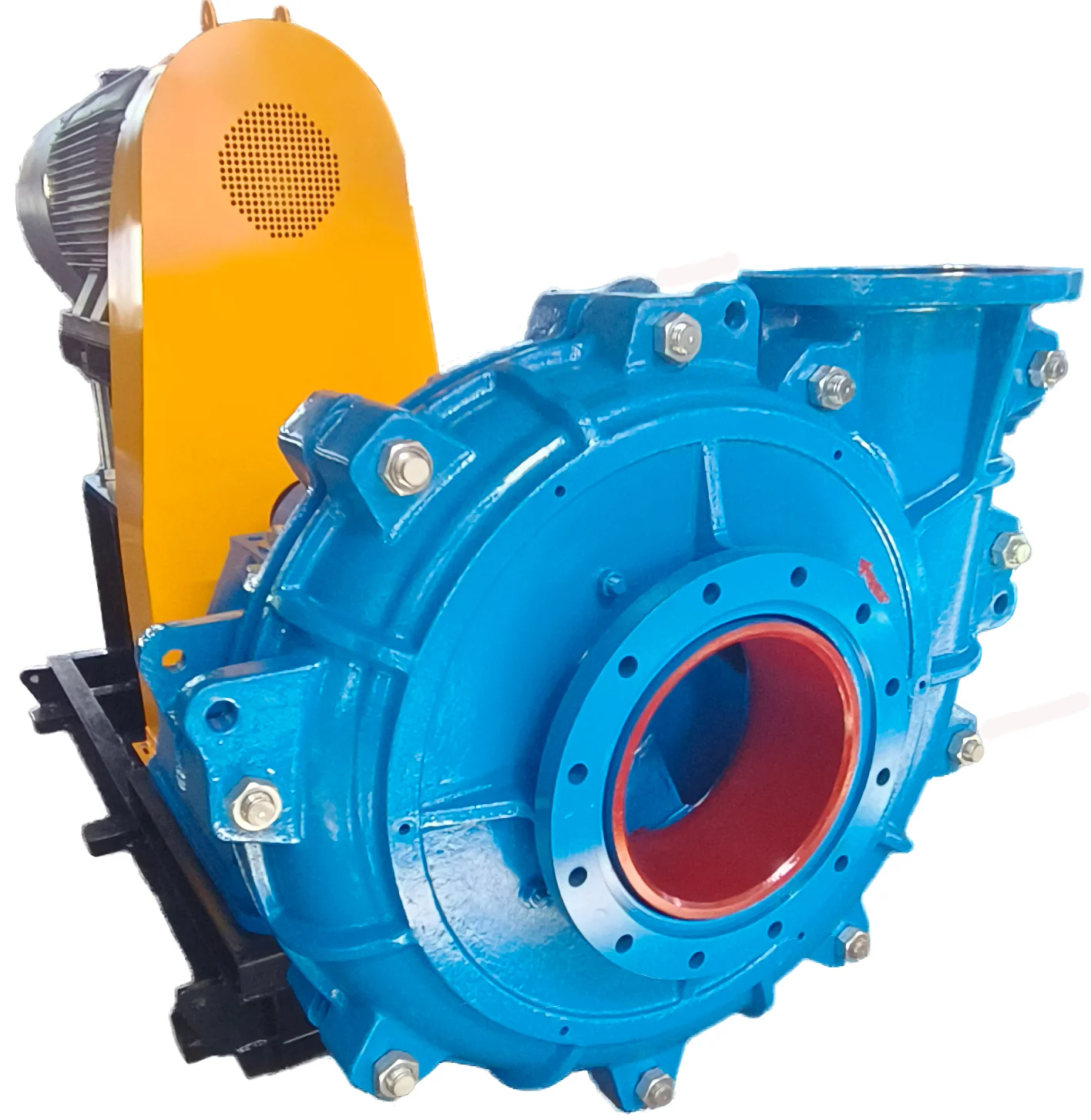

Drive Models
The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

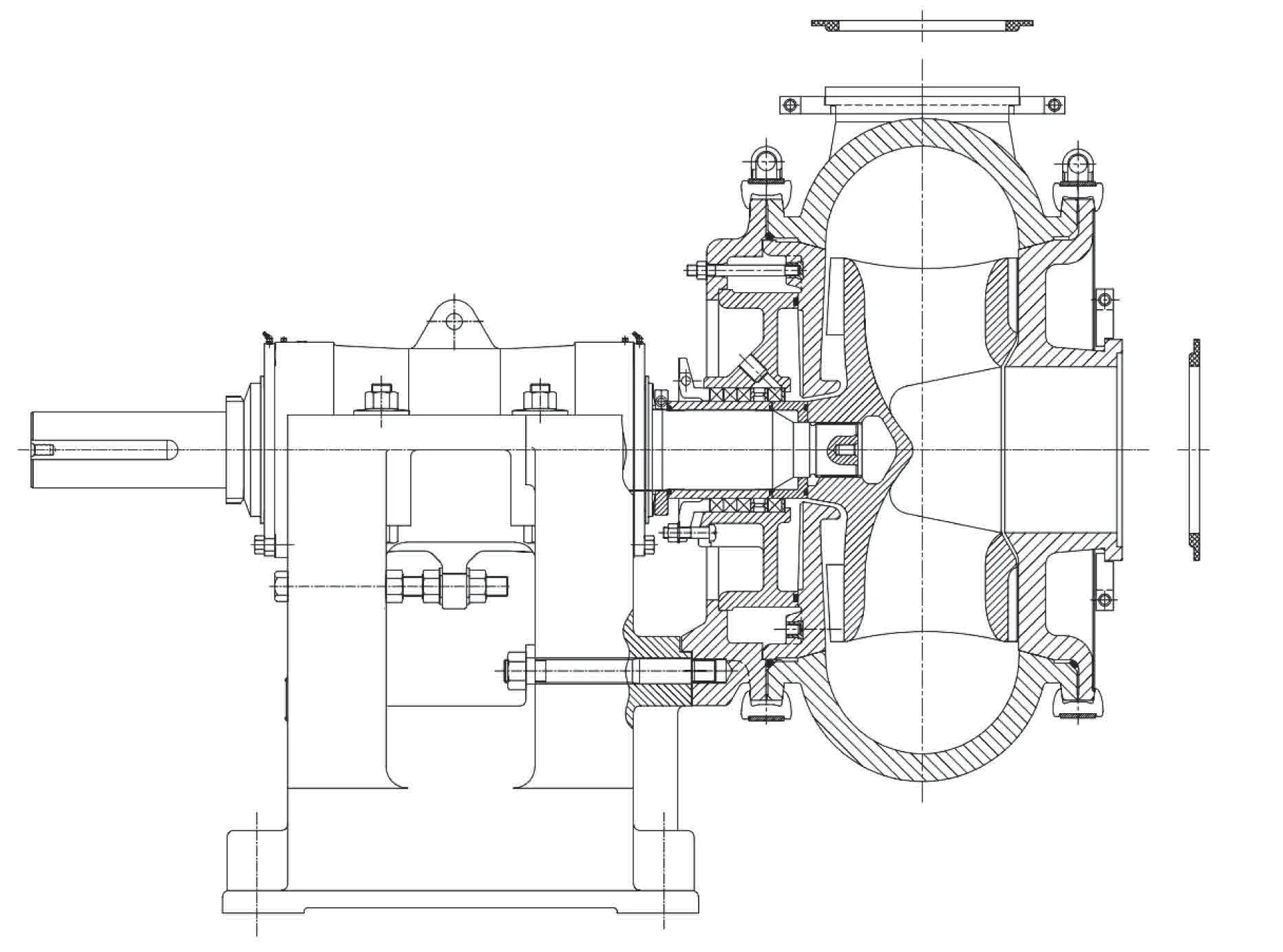

Construction of 14/12G-G Gravel

Specifications

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067
