Name: China Durable High Chrome Alloy Slurry Pump with Stable Performance
Availability: InStock
Rating: 4.5 (89 reviews)

Horizontal Rubber Lined Slurry Pump SHR/75C

Short Description:

Pump Model: SHR/75C (3/4C-AHR) SHR/75C is equivalent to 4/3C-AHR, a 3” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/75C is a relatively smaller pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic convey…

–>

Brand: CNSME

Model Number: 100PE-PCH Single Shell Slurry Pump

Model Number: CE/ISO

Place of Origin: Hebei,China

Minimum Order Quantity: 1set

Delivery Time: 7-10 days

Payment Terms: T/T, Western Union

Supply Ability: 30 Sets per Month

Packaging Details: Plywood Crate

PDF Download

Contact Now

Product Details

Pump Model: SHR/75C (3/4C-AHR)

SHR/75C is equivalent to 4/3C-AHR, a 3” discharge rubber lined slurry pump, which is widely used for corrosive slurry applications. SHR/75C is a relatively smaller pump model among our horizontal centrifugal type heavy duty rubber lined slurry pumps. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SHR is high corrosion-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of natural rubber R55, a black soft natural rubber, which has superior erosion resistance to all other materials in fine particle slurry applications. The high erosion resistance of R55 is provided by the combination of its high resilience, high tensile strength and low Shore Hardness.

Rubber pumps can also be used for applications where metal pumps are widely used, when the pH is 5-8. But they are more often used to handle fine articles with small solids.

Applications:

Mining Sectors; Food Process; Municiple Water; Midlings Disposal; Oil and Gas; Waste Water Transfer etc.

Material Construction:

Part Description	Standard	Alternative
Impeller	R55	Polyurethane
Cover Plate Liner	R55	Polyurethane
Frame Plate Liner	R55	Polyurethane
Throatbush	R55	Polyurethane
Split Outter Casings	Grey Iron	Ductile Iron
Shaft	Carbon Steel	SS304, SS316
Shaft Sleeve	SS304	SS316, Ceramic, Tungstan Carbide
Shaft Seal	Expeller Seal	Gland Packing, Mechanical Seal
Bearings	ZWZ, HRB	SKF, Timken, NSK etc.

Construction & Structure:

Specifications:

Flowrate: 79-180m3/hr; Head: 5-34.5m; Speed: 800-1800rpm; Bearing Assembly: CAM005M

(Optional Bearing Assembly: D005M, CCAM005M)

Impeller: 5-Vane Closed Type with Vane Diameter: 245mm; Max. Passage Size: 28mm; Max. Efficiency: 59%

Download as PDF

–>

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*Name

*Phone

*Email

*Message

Related News

Oct 31,25

Possible Reasons of Mechanical Seals Leakage and Solutions

Slurry Pump Mechanical Seals

Feb 15,26

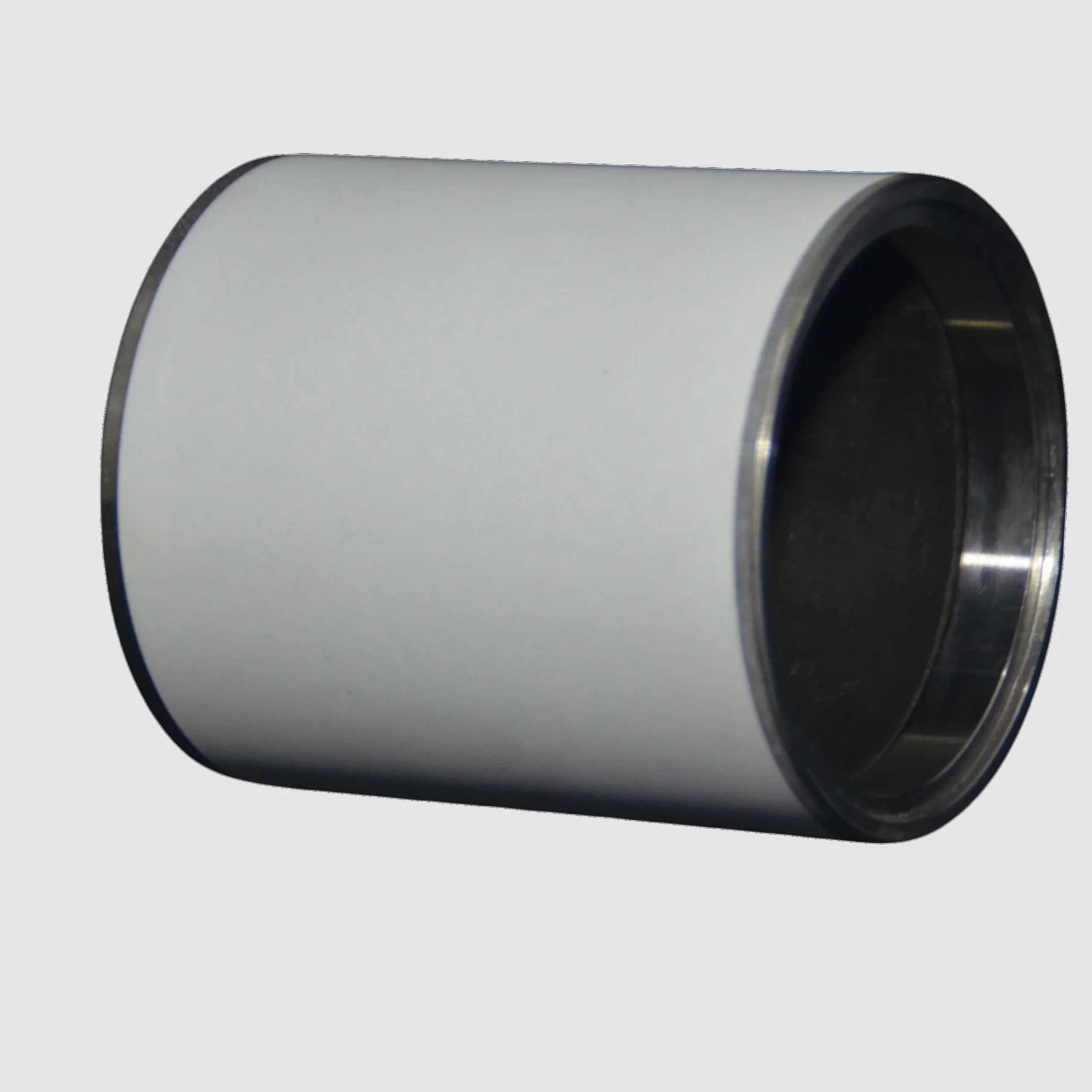

Optimizing Pump Performance with Durable Slurry Pump Shaft Sleeves
