40PV-SP

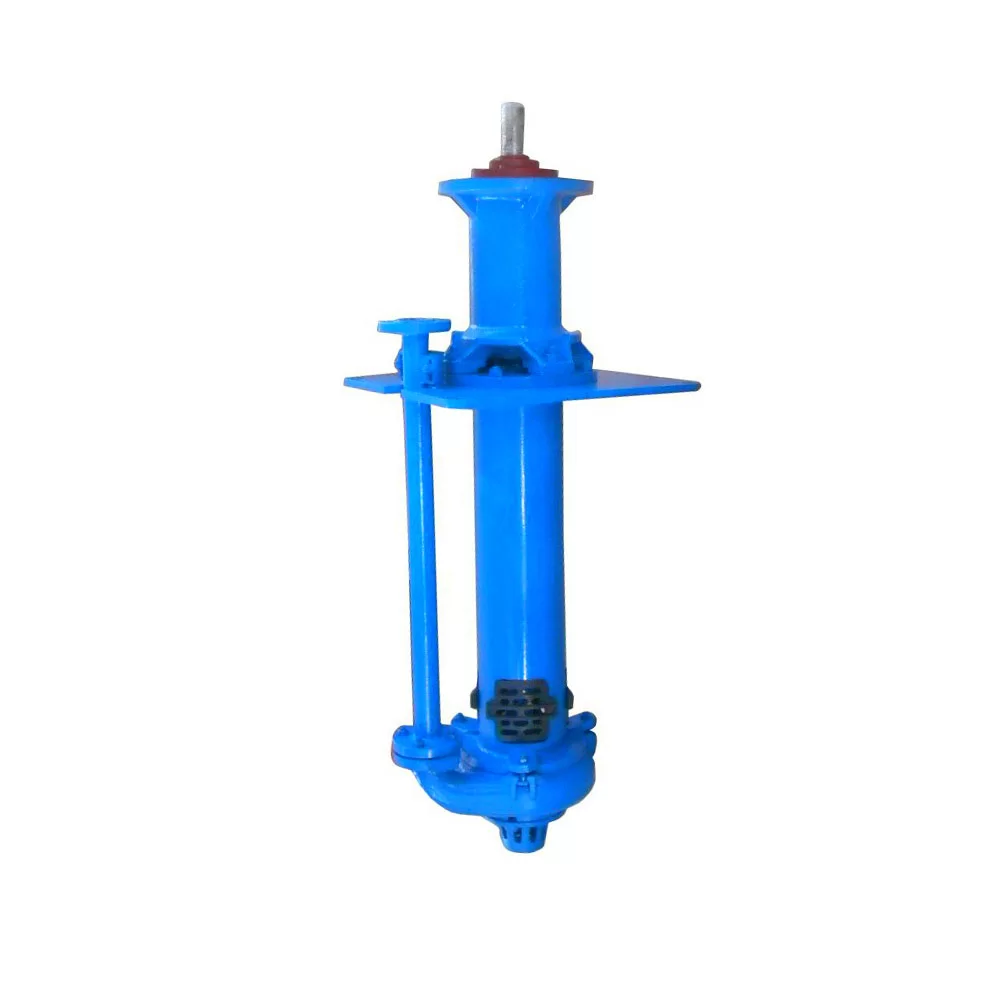

40PV-SP vertical slurry pump is a kind of high efficiency, wear resistant, corrosion resistant centrifugal slurry pump, widely used in mining, electric power, metallurgy, coal, chemical industry, building materials and other industries.The pump adopts vertical multi-stage structure, compact design, small footprint, easy to install and maintain.

PDF Download

Contact Now

Product Details

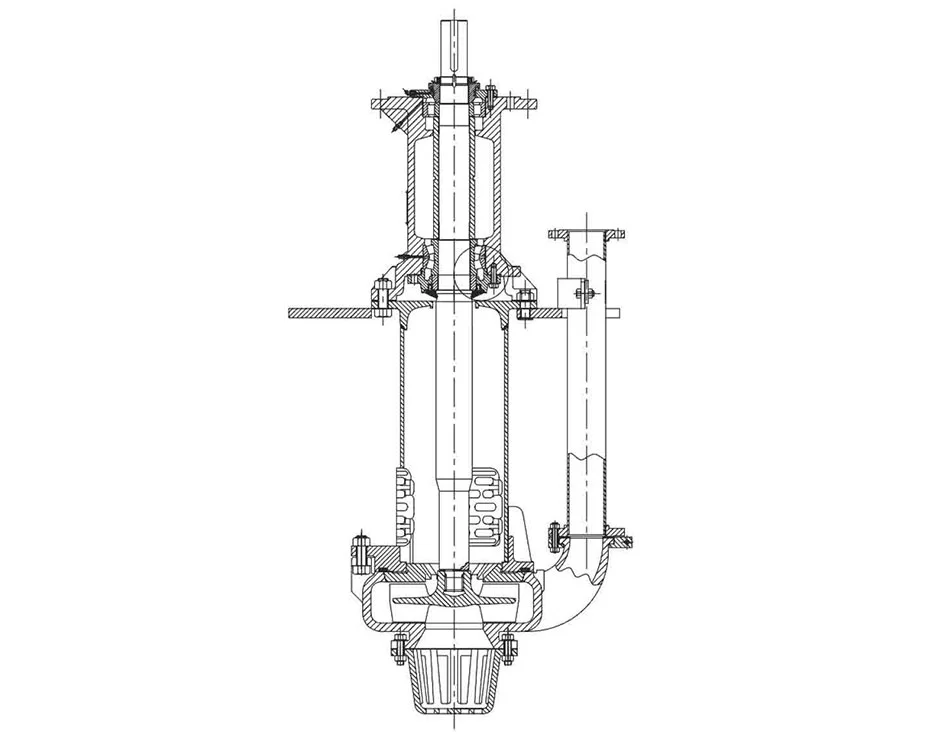

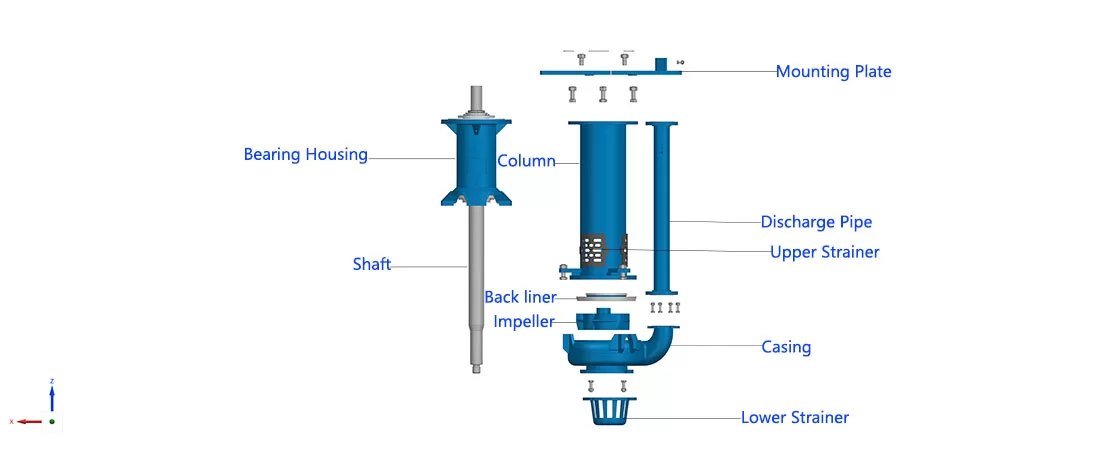

Structure Characteristics

Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry.

Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

Application

Mining: Pumping slurry, improving the efficiency of ore processing

Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

Chemical Industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.

Advantages

High Head, High Efficiency: Multi level impeller design effectively improves the head and pumping capacity.

Convenient Maintenance: Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs.

Strong Adaptability: According to the level of the slurry pool, different lengths of pump drive shafts or suction tubes can be selected to adapt to a variety of working conditions.

Reasons for choosing 40PV-SP vertical slurry pump

Advanced Technology: Introducing foreign advanced slurry pump technology with excellent performance.

High Reliability: High chromium cast iron and rubber materials are used to improve the wear resistance or corrosion resistance of the impeller and pump casing.

Environmental Protection And Energy Saving: Low noise and low vibration design to reduce the impact on the working environment.

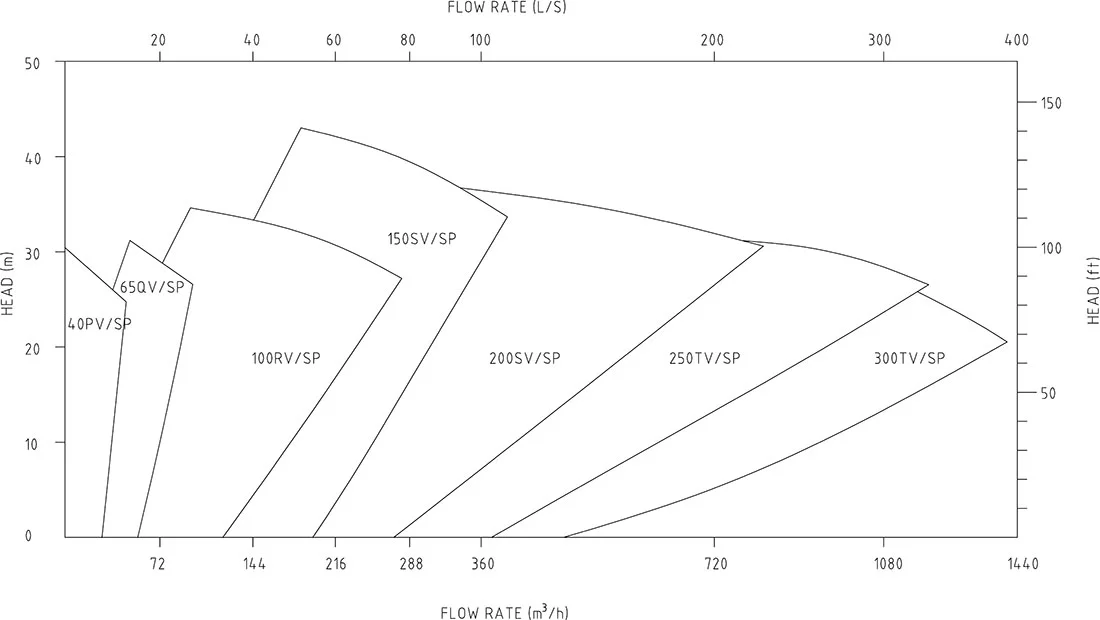

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depth mm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φ mm	Passage mm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φ mm	Passage mm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet end Parts: A05, A33, A49, A61, R55
